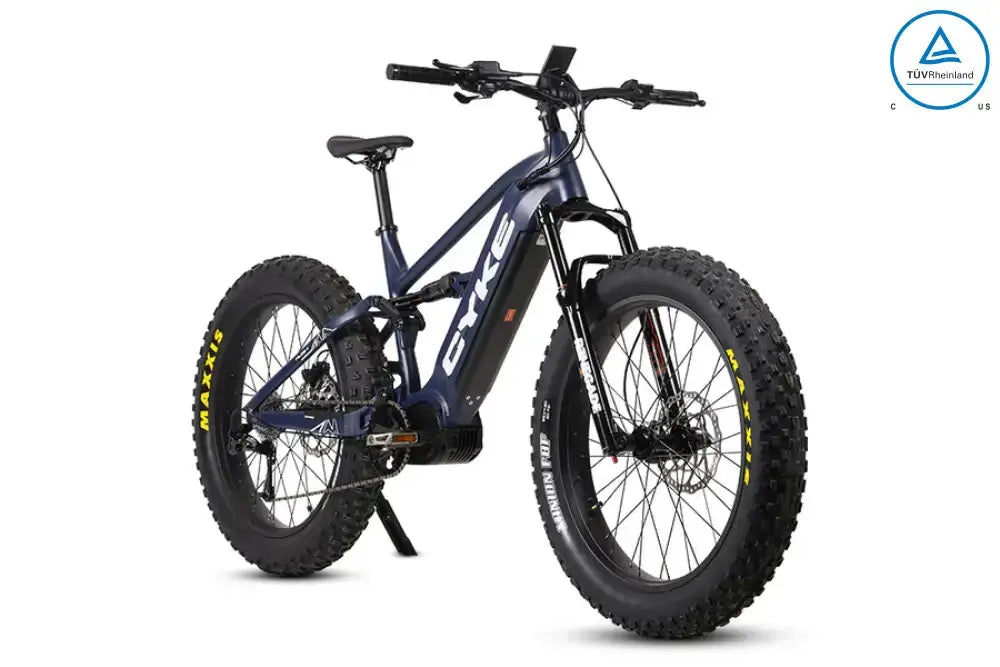

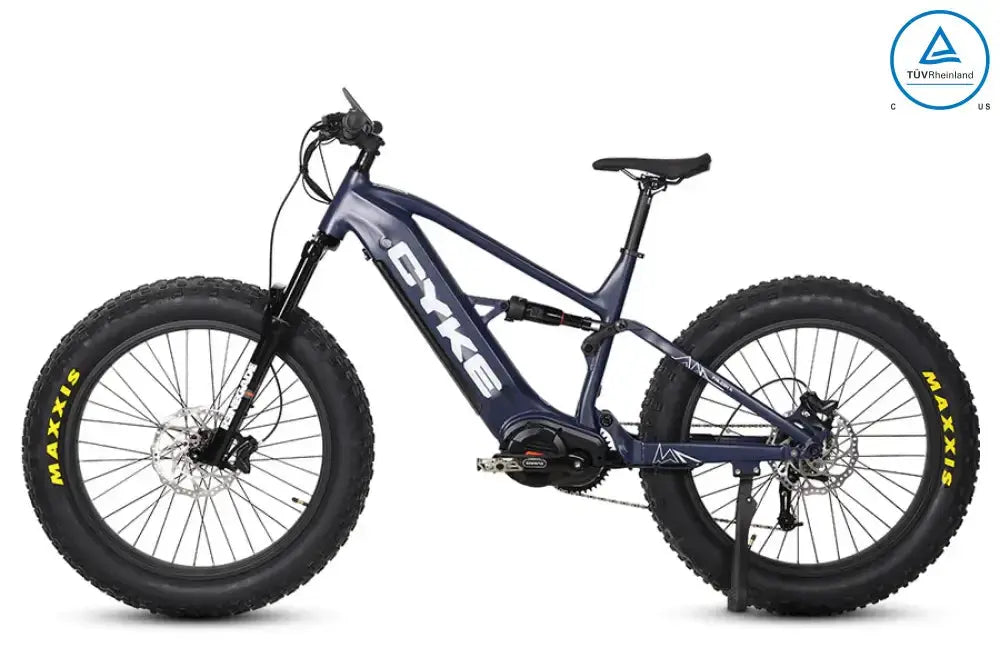

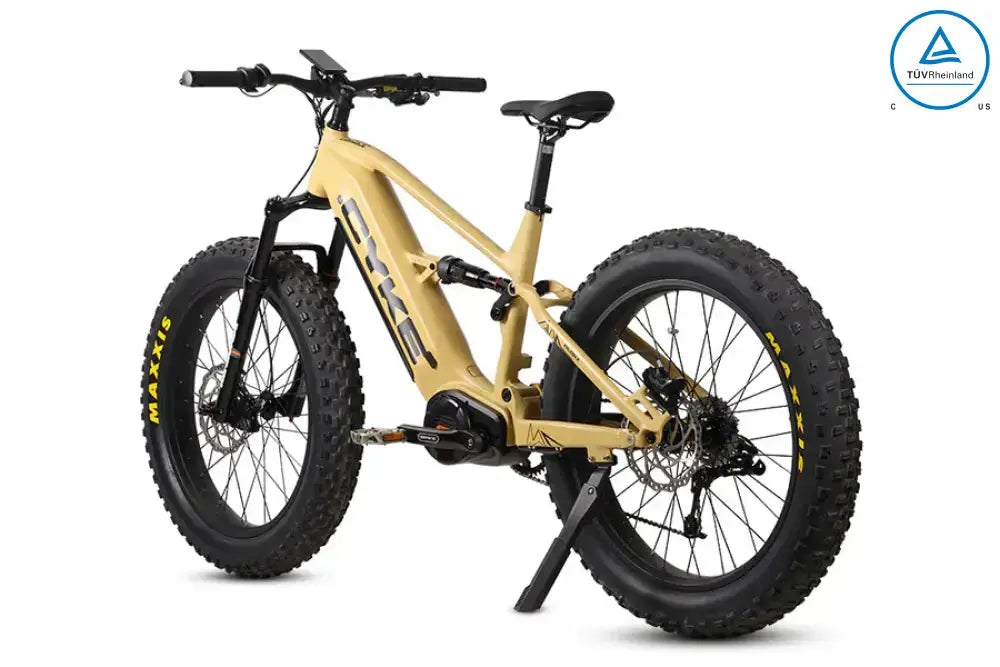

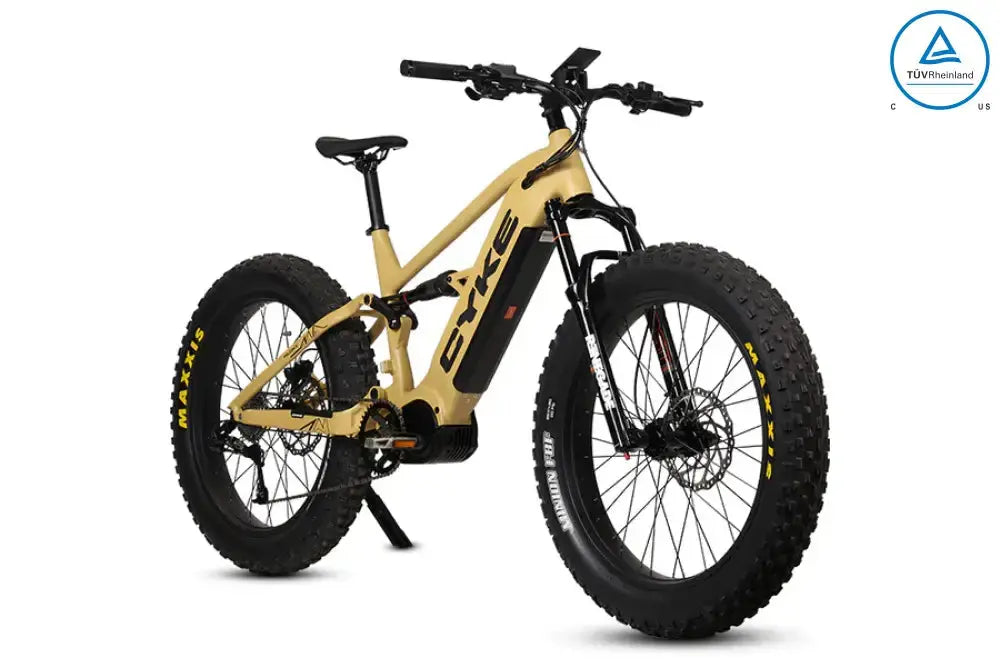

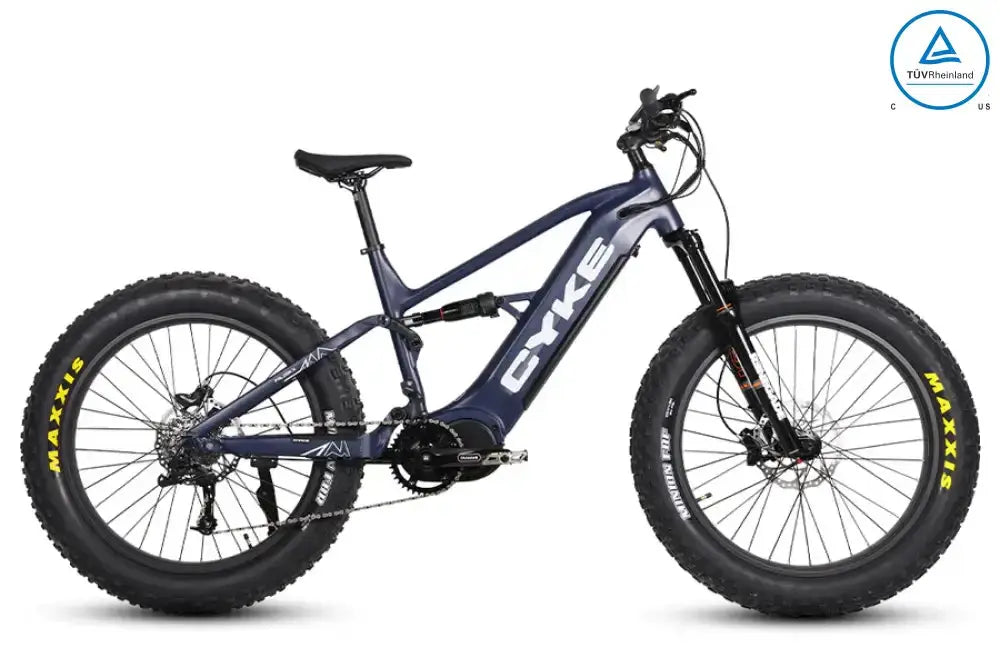

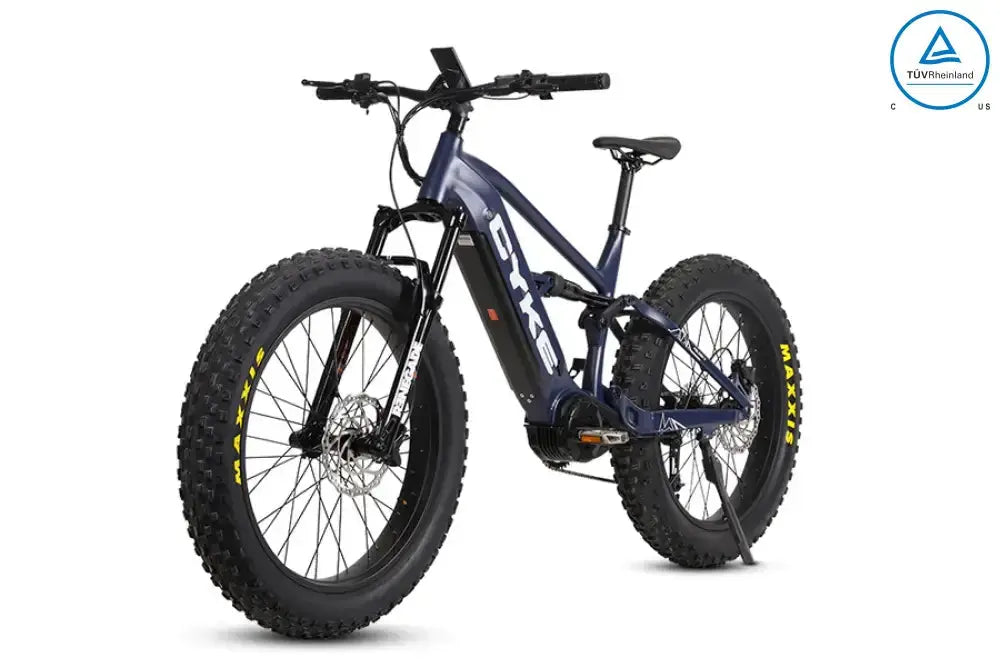

eJOEbike Falcon X Full Suspension eBike

Product Overview

The Falcon X Full Suspension eBike represents the future of electric mountain biking — a seamless fusion of high-end performance, precision engineering, and luxurious comfort. Designed for serious riders and adventure seekers, the Falcon X offers unparalleled power, control, and stability across all terrains. Whether you're navigating rugged mountain trails, technical descents, or city streets, this eBike delivers the ultimate riding experience with its advanced suspension system, 1000W mid-drive motor, and intelligent torque sensor technology.

Key Features

Full Suspension System for All-Terrain Mastery
The Falcon X features a premium full suspension system, including:

• Front: RST Renegade fork with 80–120mm travel

• Rear: RockShox RS-Deluxe Select-C1 shock with 190mm x 45mm iDebonAir+ air spring and Maxima Plush dynamic suspension lubricant

This setup provides superior shock absorption and control, minimizing fatigue and maximizing comfort, even on the most challenging terrains.

1000W BAFANG Mid-Drive Motor
Equipped with a 1000W BAFANG mid-drive motor (1100W peak output) delivering up to 160Nm of torque, the Falcon X provides explosive acceleration and smooth power delivery. Reach speeds of up to 28 MPH effortlessly and tackle steep inclines or long climbs with absolute ease.

960Wh LG Battery – Ride Further, Ride Stronger
The 48V/20Ah (960Wh) BAFANG battery built with premium LG cells provides up to 65 miles of range per charge. Featuring an advanced Battery Management System (BMS) for optimal protection and efficiency, this long-lasting battery empowers you to explore further with confidence.

TEKTRO HD-E730 Hydraulic Brake System
Take control with TEKTRO 4-piston hydraulic disc brakes paired with 203x2mm rotors. Designed for precision and durability, this system delivers powerful stopping performance in all weather conditions — ideal for aggressive downhill rides, wet surfaces, or snowy terrains.

Torque Sensor for Natural Riding Feel
The smart torque sensor adjusts power output according to your pedaling intensity, ensuring a smooth, natural, and efficient riding experience. This intelligent system enhances range and responsiveness, giving you total command on every trail.

SRAM 9-Speed Gear System
Shift effortlessly through terrain with the SRAM 9-speed drivetrain, featuring an SL-X5 shifter, RD-X5 derailleur, and CS-PG-950 cassette. The precision gearing ensures seamless transitions for maximum control and energy efficiency.

Maxxis Minion FBF/FBR Tires
Equipped with Maxxis Minion FBF (front) and FBR (rear) tires, the Falcon X offers outstanding traction and low rolling resistance. The FBF’s open tread design maximizes grip on loose surfaces, while the FBR provides smooth performance on rugged trails — perfect for confident cornering and technical climbs.

Durable Italian Flat-Welded Frame
The Falcon X features an Italian flat-welded aluminum alloy frame, crafted using baking varnish, hydraulic forming, and integrated welding for a smooth, seamless look. The result is an ultra-strong frame that combines durability with sleek, aerodynamic style.

Smart Connectivity with CYKE App
Stay connected with the BAFANG display system, which links via Bluetooth to the CYKE App. Monitor real-time data, access navigation tools, and customize riding settings directly from your smartphone. The IP66-rated LCD display features five brightness levels, ensuring clear visibility in all light conditions.

Specifications

• Motor: BAFANG 1000W Mid-Drive (Peak 1100W, 160Nm torque)

• Battery: 48V/20Ah (960Wh) LG Lithium-Ion, with BMS

• Range: Up to 65 miles per charge

• Top Speed: 28 MPH (Class 3)

• Suspension:

  • Front: RST Renegade (80–120mm travel)

  • Rear: RockShox RS-Deluxe Select-C1 (iDebonAir+ air spring)

• Brakes: TEKTRO HD-E730 Hydraulic Disc, 4-piston, 203x2mm rotors

• Gearing: SRAM 9-Speed (SL-X5 shifter, RD-X5 derailleur, CS-PG-950 cassette)

• Tires: Maxxis Minion FBF/FBR 27.5”

• Frame: Italian Flat-Welded Aluminum Alloy

• Display: BAFANG LCD (IP66 rated, 5-level backlight)

• Smart App: CYKE App (Bluetooth connectivity, ride data, customization)

• Torque Sensor: Intelligent pedal assist adjustment

• Weight Capacity: Up to 330 lbs (150 kg)

• Range Modes: Eco, Tour, Sport, Boost

• Charging Time: 5–6 hours

Why Choose the Falcon X Full Suspension eBike?

• Premium Full Suspension: Industry-leading components for ultimate comfort and control.

• Extreme Power: 1000W mid-drive motor with intelligent torque assistance.

• Adventure-Ready Range: Up to 65 miles per charge with long-lasting LG cells.

• Pro-Level Braking: 4-piston TEKTRO hydraulic system for superior safety.

• Smart & Connected: CYKE App integration with real-time performance tracking.

• Trail-Tested Design: Maxxis Minion tires and RockShox performance for technical terrain.

• Sleek Durability: Italian-engineered frame built to last.

What’s Included

• Falcon X Full Suspension eBike

• 48V/20Ah LG Battery

• Smart Charger

• Assembly Tools

• User Manual

Warranty & Support

The Falcon X Full Suspension eBike includes eJOE’s comprehensive warranty, covering the motor, battery, and electrical components for long-term reliability. Enjoy responsive customer support and professional service for total peace of mind.
